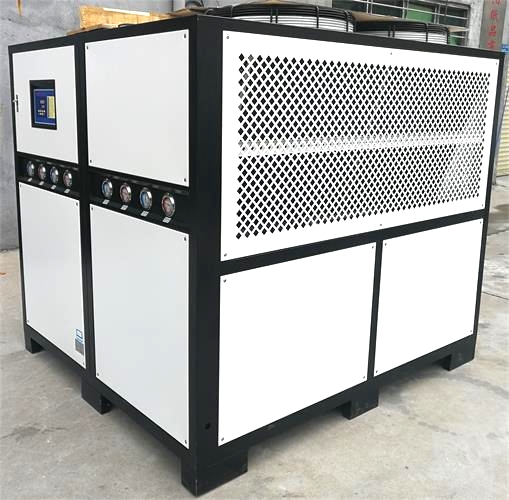

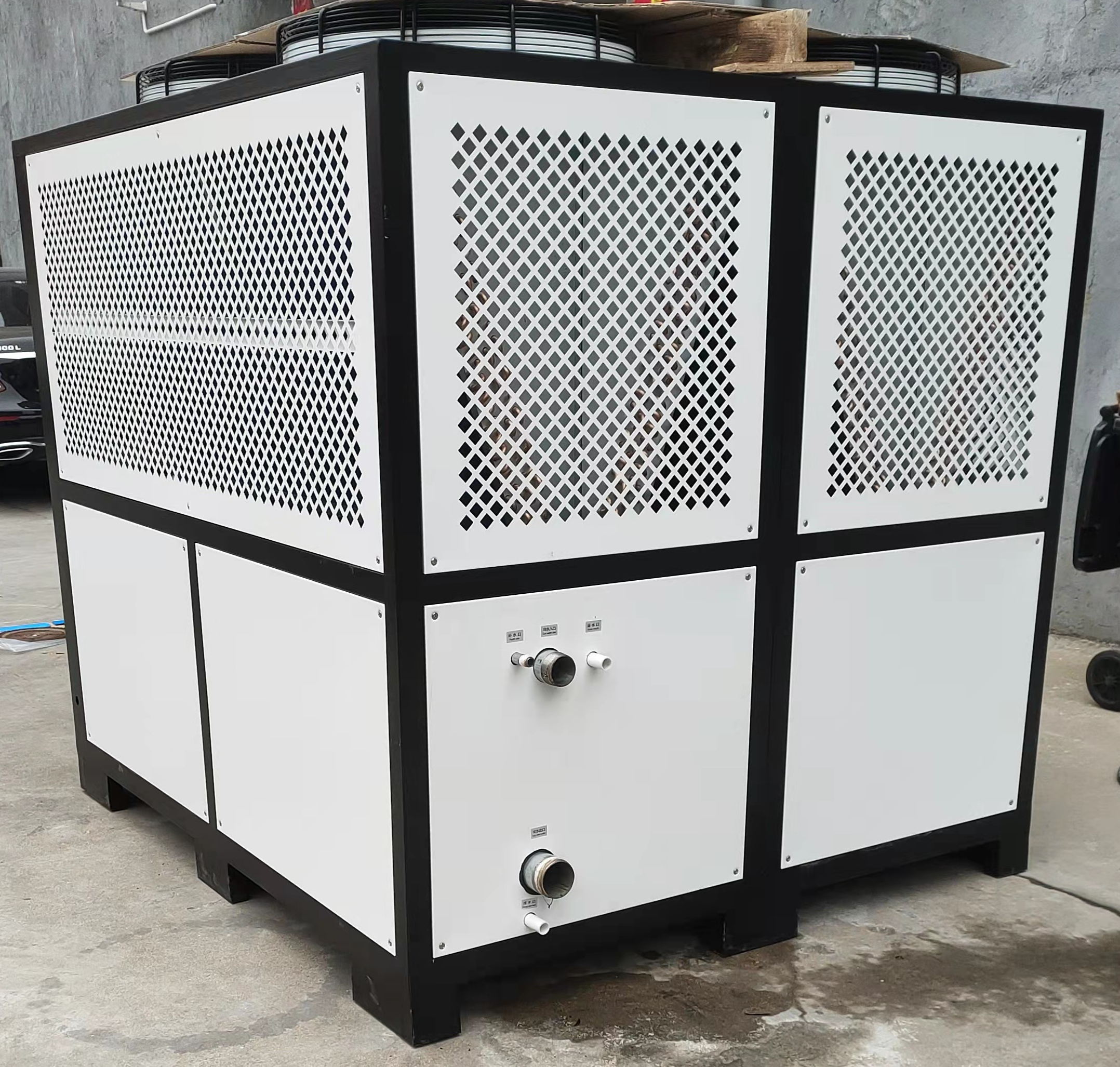

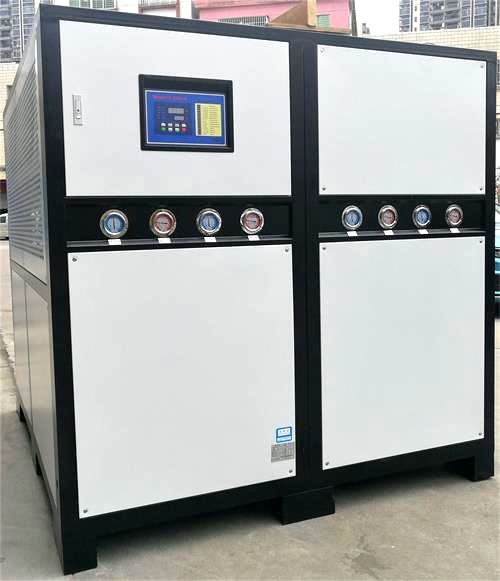

3PH-200V-50HZ 40HP Air refrigeratus Box Chiller
  • 3PH-200V-50HZ 40HP Air refrigeratus Box Chiller - 0 3PH-200V-50HZ 40HP Air refrigeratus Box Chiller - 0
  • 3PH-200V-50HZ 40HP Air refrigeratus Box Chiller - 1 3PH-200V-50HZ 40HP Air refrigeratus Box Chiller - 1
  • 3PH-200V-50HZ 40HP Air refrigeratus Box Chiller - 2 3PH-200V-50HZ 40HP Air refrigeratus Box Chiller - 2

3PH-200V-50HZ 40HP Air refrigeratus Box Chiller

Sinis Securus retineri 3PH-200V-50HZ 40hp Air refrigeratus Box Chiller cum 12 mensibus Warranty. Haec CE certificata Chiller est. Potest institui sine turri refrigerio, facile instituere, movere facile, et celeriter refrigerare 40 horsepower chiller.

Model:JSFL-40-D

Mitte Inquisitionem

depictio producti

3PH-200V-50HZ 40hp Air refrigeratus Box Chiller


Introductio

Hoc est 3PH-400V-50HZ 40HP frigidioris aeris refrigerantis. Capsulae-typus magnae Chiller cum capacitate refrigerandi 126KW (108360Kcal/hr). Late usus est in omni industria: magna iniectio machinae fingunt refrigerationem, optica refrigerationem refrigerationem, glycol refrigerationem, electroplating oxidatio piscina refrigerationis, etc.
Machina continue per 8760 horas sine defectu currit et in XII mensibus praestatur, gratuita technica officia rectoris plus quam 10 annos praebemus. Lorem summus efficientia energiae salutaris systema energiae per 13% et gratuita productione minuere potest. Facere valorem realem pro clientibus et efficientiam producere meliorem.





Exemplar: JSFL-40-D

Brand: Jiusheng

Intentio: 3PH-200V-50HZ
Compressor potentia: 40HP/30KW
Temperatus imperium range: 5-35℃
Sentinam potestatem: 3.75W
Sentinam fluunt: 700L/MIN
Sentinam caput: 16M
Facultas refrigerandi: 126KW/hr (108360Kcal/hr)
Refrigerant: R22 (amica refrigerandi environmentally R407C/134A... potest nativus)


Minimum order quantitas: 1 set

Payment method: filum translationis, EXW, FOB/negotio

Pretium: Negotiable

Originis locus: Dongguan urbs, Guangdong Provincia, China

Testimonia: CE

Partus tempus: 10-20 dies / negotium

Servitium: OEM / ODM

Facultates copia: 1000PCS / mensis

Stipare: plywood sarcina


Features

1. Summus praecisio temperatura moderatio et summus celeritas infrigidandi efficientiam, et industria salutaris et operatio amicabilis environmentally-.

2. Accessiones mundi celeberrimae: Panasonic/Daikin/Copland Compressores, Schneider Electric, Aquae Muchuan soleatus, Talos tibiae aeneae etc.


Morbi laoreet

Exemplar # JSFL-40-D
Nominal
Capacitas refrigeratio		 kW 126
kCal/h* 108360
BTU 430112
Potestas Supple 3PH-200V-50HZ
Totalis potentia potenti kW 36.27
Operatio Current A 56
Compressor Brand Copeland
Type Plena volumen hermeticum
Potentia input（kW） 7.35 * 4PC
Frigus Fan Type Rotor externus axialis fan
Virtus (kW) 0.78*4PC
Pump Potentia(kW) 3.75
Flow rate (m³/h) 42
Sentinam caput (m) 16
Condenser Type Aluminium fin & tubus cupreus
Evaporator Type Aeris coil
Piscinam Materia SUS Dives
Volumen (L.) 350
Decus pipe ø Medium Outlet DN80
ø Medium Inlet DN80
Electrical AC Contactor Schneider
Refrigerationem Condition Ambient Temp. 5℃ - 45℃
Temp Range aqua frigida 5℃ - 30℃
Temp Accuracy ±1℃
Turbatio Ratio Abnormes Temperature, Phase Reverse / missing, High / Low Pressure Culpa, Compressor cultro,  Compressor Overheat, Pump cultro, Medium iaces, Brevis circuitus
Temperature Display Dis-button digitalis ostentationem
Refrigerationem medium Aqua plumbi
Refrigerant R22
Mensuratio L*W*H(mm) 2010*1750*1670
Net Pondus Kg 1200


Quid a nobis emis frigidiorem?

A. Ducens opificem chillers industrialis per 20 annos.

B. Peritus solutiones refrigerationis industriae.

C. Multa officia nativus ad chillers industriales provideri potest.

D. Stabilis qualitas + ieiunium partus tempus + rationabile pretium + validum technicum subsidium + intimam post venditionem servitium.

E. Nostrae industriae chillers CE certificationem transierunt.


Applications
