Products > Caeli refrigeratum Chiller
> Air refrigeratum Box Chiller
>
3PH-400V-50HZ 50HP Air refrigeratus Box Chiller
3PH-400V-50HZ 50HP Air refrigeratus Box Chiller
Sinis Securus retineri 3PH-400V-50HZ 50hp Air refrigeratus Box Chiller cum 12 mensibus Warrantia Suppliers. Haec CE certificata Chiller est. Potest institui sine turri refrigerio, facile instituere, movere facile, et celeriter refrigerare 50HP horsepower chiller.
Model:JSFL-50-C
Mitte Inquisitionem
depictio producti

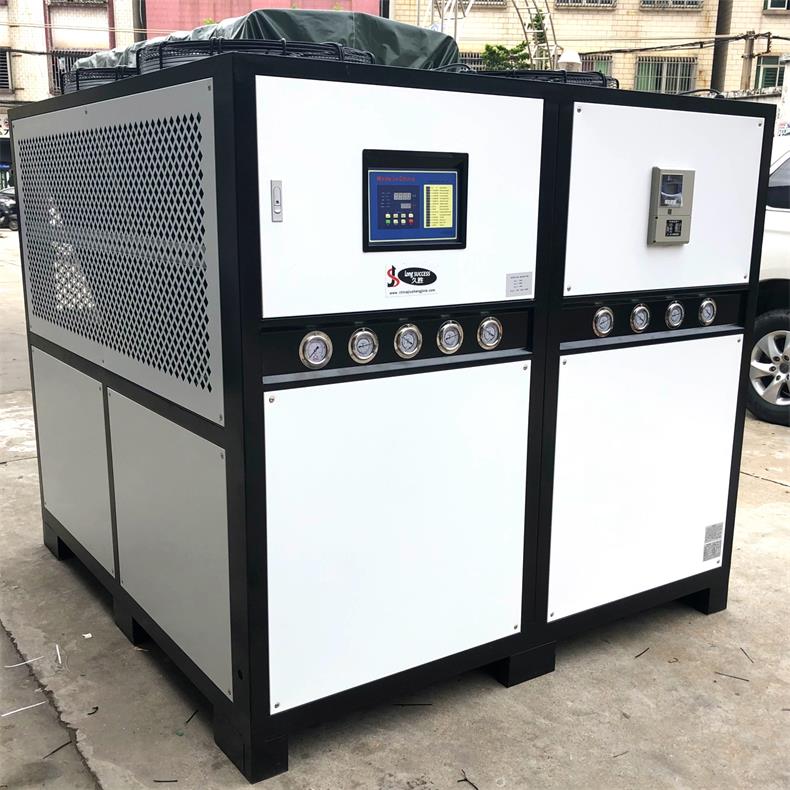

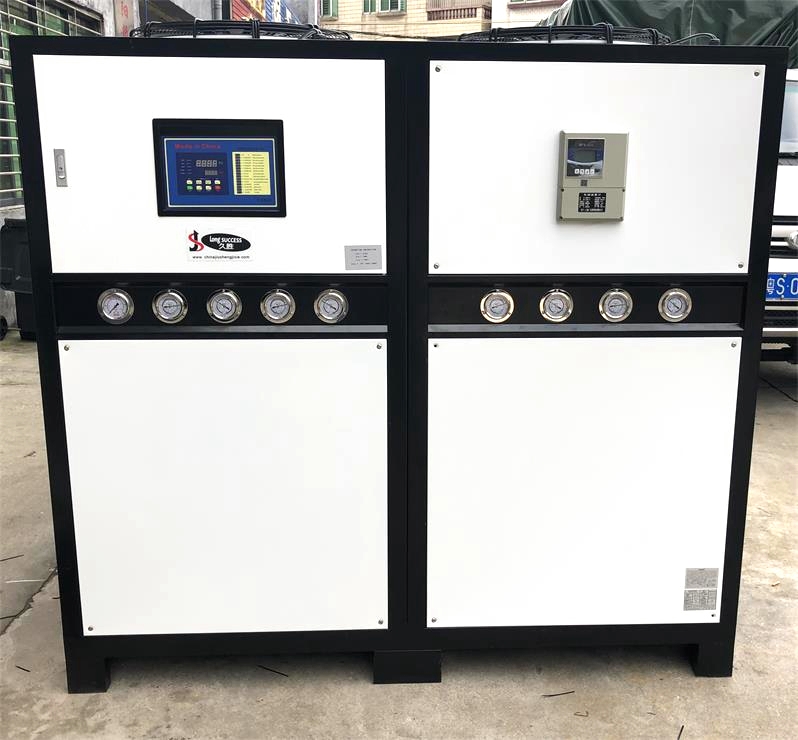

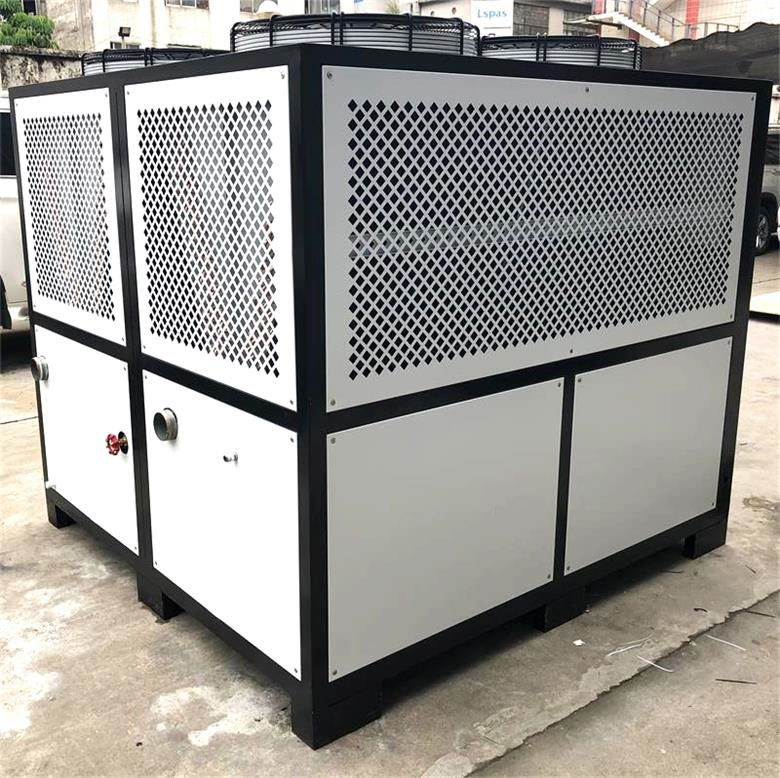

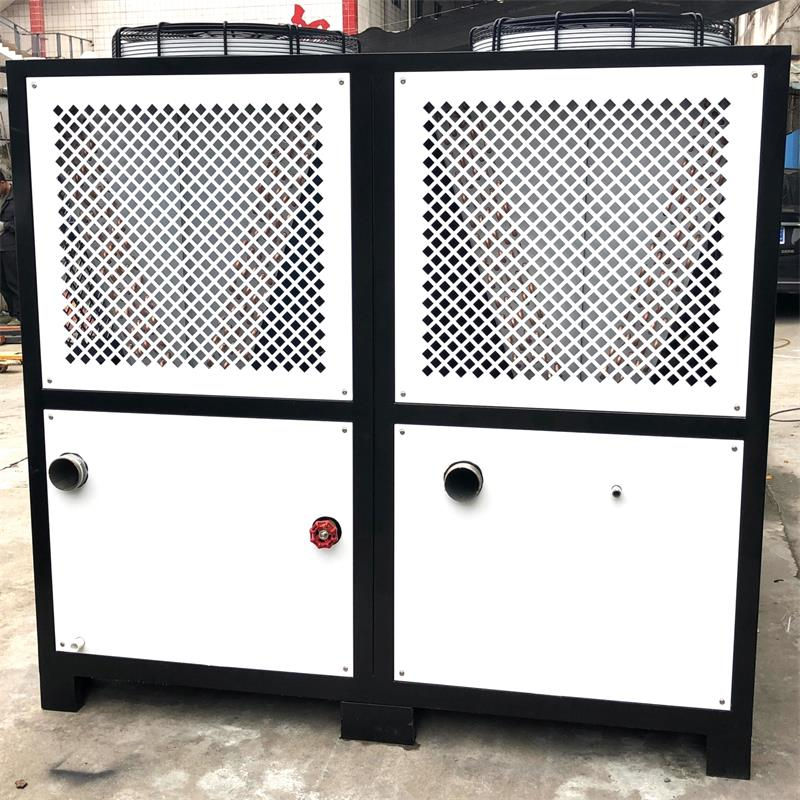

3PH-400V-50HZ 50hp Air refrigeratus Box Chiller
Introductio
Hoc sartor factus est 3PH-400V-50HZ 50HP aqua frigida aer refrigeratus. Magnae archa-typus Chiller cum facultate refrigerandi 158KW (135880Kcal/hr) et maximae rate fluxus 700L/Min, nativus pro facilitate electronicorum Iaponiae.
Exemplar: JSFL-L-C
Potentia specificatio: 3PH-400V-50HZ
Brand: Jiusheng
Compressor potentia: 50HP/37.5KW
Temperatus imperium range: 5-35℃
Sentinam potestatem: 3.75W
Sentinam fluunt: 700L/MIN
Sentinam caput: 16M
Facultas refrigerandi: 158KW/hr (135880Kcal/hr)
Refrigerant: R404A
Minimum order quantitas: 1 set
Payment method: filum translationis, EXW, FOB/negotio
Pretium: Negotiable
Originis locus: Dongguan urbs, Guangdong Provincia, China
Testimonia: CE
Partus tempus: 10-20 dies / negotium
Servitium: OEM / ODM
Facultates copia: 1000PCS / mensis
Stipare: plywood sarcina
3PH-400V-50HZ 50hp Air refrigeratus Box Chiller ostentus et commoda
1.50hp Air refrigeratum Box Chiller， Excelsa subtilitas temperaturae temperationis et summae celeritatis infrigidandi efficientiam, et industria salutaris et operatio amicabilis.
2. 50hp Air-refrigerata Box Chiller，Famous notam accessiones in nostris industrialibus Chillers
Utimur mundo celeberrimo accessoriis nostris in aere refrigerato industriae Chiliarchae. sub normalis operationem, plus quam X annos adhiberi potest.

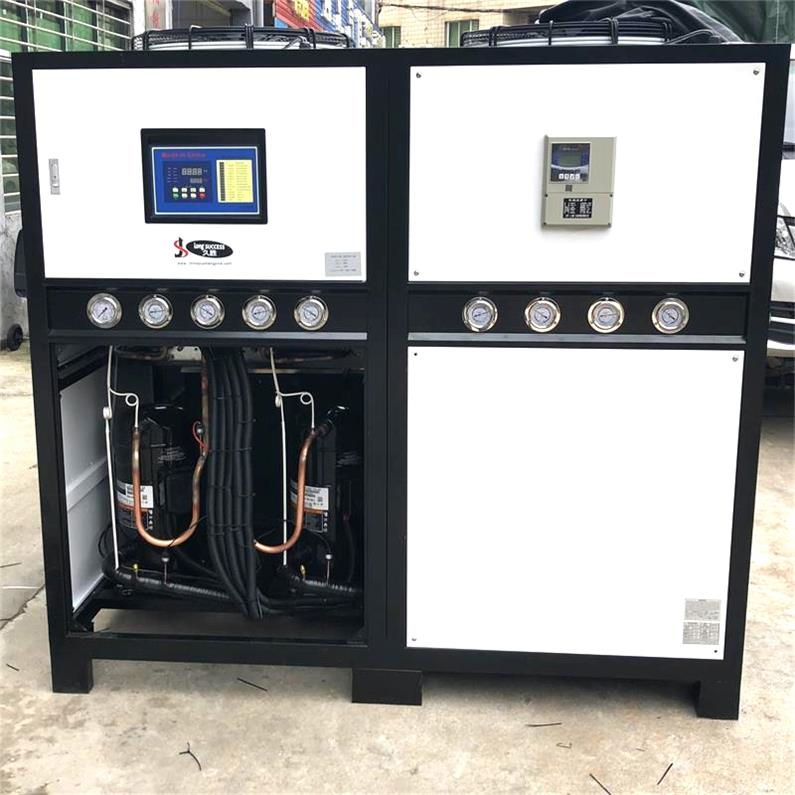

Compressores Panasonic/Daikin/Coeland, Schneider Electric, Multi scaena centrifugae, Talos tibiae aeris, etc.
3PH-400V-50HZ 50hp Air refrigeratus Box Chiller parametri
| Exemplar # | JSFL-L-C | |
| Nominal Capacitas refrigeratio |
kW | 158 |
| kCal/h* | 135880 | |
| BTU | 539346 | |
| Potestas Supple | 3PH-400V-50HZ | |
| Totalis potentia potenti | kW | 44.51 |
| Operatio Current | A | 70 |
| Compressor | Brand | Copeland |
| Type | Plena volumen hermeticum | |
| Potentia input（kW） | 9.19 * 4PC | |
| Frigus Fan | Type | Rotor externus axialis fan |
| Virtus (kW) | 1*4PC | |
| Pump | Potentia(kW) | 3.75 |
| Flow rate (m³/h) | 42 | |
| Sentinam caput (m) | 16 | |
| Condenser | Type | Aluminium fin & tubus cupreus |
| Evaporator | Type | Aeris coil |
| Piscinam | Materia | SUS Dives |
| Volumen (L.) | 400 | |
| Decus pipe | ø Medium Outlet | DN80 |
| ø Medium Inlet | DN80 | |
| Electrical | AC Contactor | Schneider |
| Refrigerationem Condition | Ambient Temp. | 5℃ - 45℃ |
| Temp Range aqua frigida | 5℃ - 30℃ | |
| Temp Accuracy | ±1℃ | |
| Turbatio Ratio | Abnormes Temperature, Phase Reverse / missing, High / Low Pressure Culpa, Compressor cultro, Compressor Overheat, Pump cultro, Medium iaces, Brevis circuitus | |
| Temperature Display | Dis-button digitalis ostentationem | |
| Refrigerationem medium | Aqua plumbi | |
| Refrigerant | R22 | |
| Mensuratio | L*W*H(mm) | 2010*1750*1670 |
| Net Pondus | Kg | 1400 |
Quid a nobis emis frigidiorem?
A. Ducens opificem chillers industrialis per 20 annos.
B. Peritus solutiones refrigerationis industriae.
C. Multa officia nativus ad chillers industriales provideri potest.
D. Stabilis qualitas + ieiunium partus tempus + rationabile pretium + validum technicum subsidium + intimam post venditionem servitium.
E. Nostrae industriae chillers CE certificationem transierunt.
Applications Users
Tibi gratias ago pro patientia vestra!
Si de pretiis ac technicis quaestionibus quaerere debes, rogamus 13925748878 Miss Zhu，We optimam qualitatem servitii tibi praestabimus.
Hot Tags: 50HP Air refrigerata Box Chiller, Sina, Qualitas, Vilia, In Stock, Mos, Fabrica, Supplier, Factory, Factus in Sinis, Dura, Classy, Fancy, Securus retineri, Price List, Quotation, CE, 1 Anno Warranty
