3PH-460V-60HZ 50HP Air-refrigerata Box Chiller

Sinis Securus retineri 3PH-460V-60HZ 50hp Air refrigeratus Box Chiller cum 12 mensibus Warranty. Haec est CE certificata Chiller. Institui potest sine turri refrigerio, facile instituere, movere facile, et celeriter refrigerare 3PH-460V-60HZ 50 vis equorum frigidior.

Model:JSFL-50-A

Mitte Inquisitionem

depictio producti

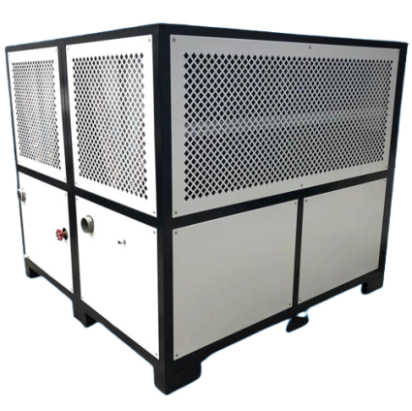

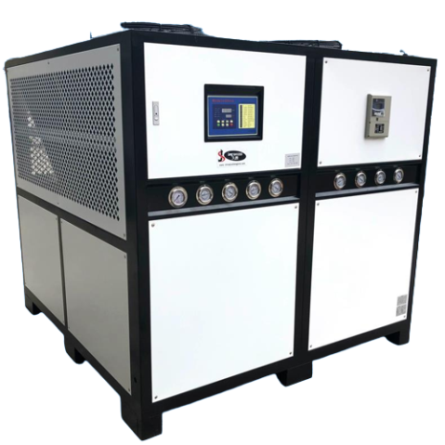

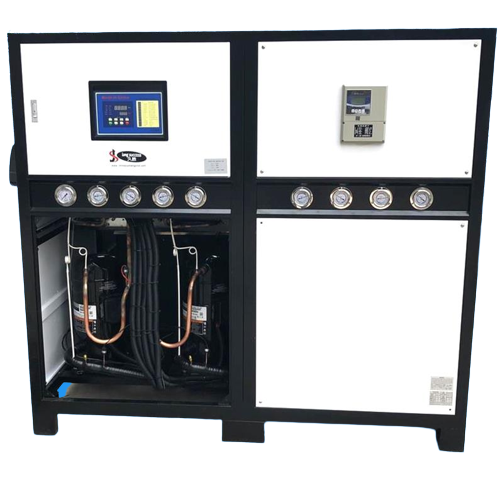

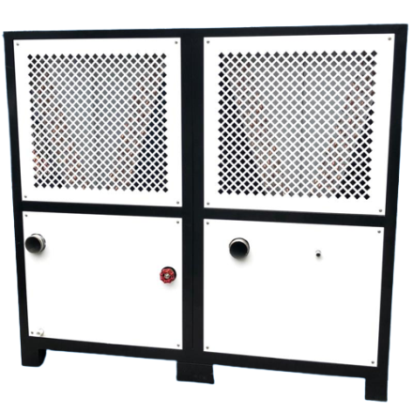

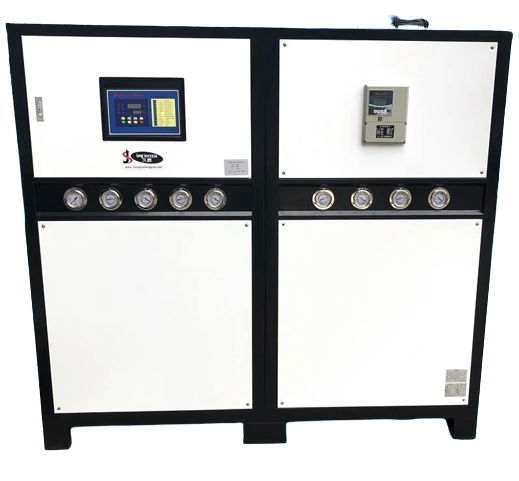

3PH-460V-60HZ 50hp Air refrigeratus Box Chiller


Introductio

Hoc est 3PH-460V-60HZ 50HP frigidioris aeris refrigerantis. Capsulae-type magnae frigidioris cum capacitate refrigerandi 158KW (135880Kcal/hr; 539346 BTU). Late usus est in omni industria: magna iniectio machinae fingunt refrigerationem, optica refrigerationem refrigerationem, glycol refrigerationem, electroplating oxidatio piscina refrigerationis, etc.
Machina continue percurrit 8760 horas sine defectu et in XII mensibus praestatur, gratuita officia technicae rectoris plus quam 10 annos praebemus. Lorem summus efficientia energiae salutaris systema energiae per 13% et gratuita productione minuere potest. Facere valorem realem pro clientibus et efficientiam producere meliorem.






Exemplar: JSFL-L-A

Brand: Jiusheng

Intentio: 3PH-460V-60HZ
Compressor potentia: 50HP/37.5KW
Temperatus imperium range: 5-35℃
Sentinam potestatem: 3.75W
Sentinam fluunt: 700L/MIN
Sentinam caput: 16M
Facultas refrigerandi: 158KW/hr (135880Kcal/hr; 539346 BTU)
Refrigerant: R22 (amica refrigerandi environmentally R407C/134A... potest nativus)


Minimum order quantitas: 1 set

Payment method: filum translationis, EXW, FOB/negotio

Pretium: Negotiable

Originis locus: Dongguan urbs, Guangdong Provincia, China

Testimonia: CE

Partus tempus: 10-20 dies / negotium

Servitium: OEM / ODM

Facultates copia: 1000PCS / mensis

Stipare: plywood sarcina


3PH-460V-60HZ 50hp Air-refrigerata Box Chiller ostenta et commoda

1. Summus praecisio temperaturae moderatio et efficientia summus celeritas refrigerandi,  industria salutaris et operatio amicabilis environmentally- .

2. Accessiones mundi celeberrimae: Panasonic/Daikin/Copland Compressores, Schneider Electric, Aquae Muchuan soleatus, Talos tibiae aeneae etc.


3PH-460V-60HZ 50hp Air refrigeratus Box Chiller parametri

Exemplar # JSFL-L-A
Nominal
Capacitas refrigeratio
kW 158
kCal/h* 135880
BTU 539346
Potestas Supple 3PH-460V-60HZ
Totalis potentia potenti kW 44.51
Operatio Current A 70
Compressor Brand Copeland
Type Plena volumen hermeticum
Potentia inputkW 9.19 * 4PC
Frigus Fan Type Rotor externus axialis fan
Virtus (kW) 1*4PC
Pump Potentia(kW) 3.75
Flow rate (m³/h) 42
Sentinam caput (m) 16
Condenser Type Aluminium fin & tubus cupreus
Evaporator Type Aeris coil
Piscinam Materia SUS Dives
Volumen (L.) 400
Decus pipe ø Medium Outlet DN80
ø Medium Inlet DN80
Electrical AC Contactor Schneider
Refrigerationem Condition Ambient Temp. 5 - 45
Temp Range aqua frigida 5 - 30
Temp Accuracy ±1
Turbatio Ratio Abnormes Temperature, Phase Reverse / missing, High / Low Pressure Culpa, Compressor cultro,  Compressor Overheat, Pump cultro, Medium iaces, Brevis circuitus
Temperature Display Dis-button digitalis ostentationem
Refrigerationem medium Aqua plumbi
Refrigerant R22
Mensuratio L*W*H(mm) 2010*1750*1670
Net Pondus Kg 1400


Quid a nobis emis frigidiorem?

A. Ducens opificem chillers industrialis per 20 annos.

B. Peritus solutiones refrigerationis industriae.

C. Multa officia nativus ad chillers industriales provideri potest.

D. Stabilis qualitas + ieiunium partus tempus + rationabile pretium + validum technicum subsidium + intimam post venditionem servitium.

E. Nostrae industriae chillers CE certificationem transierunt.


Applications

Tibi gratias ago pro patientia vestra!

Si de pretiis ac technicis quaestionibus quaerere debes, rogamus 13925748878 Miss Zhu,We optimam qualitatem servitii tibi praestabimus.



Hot Tags: 3PH-460V-60HZ 50HP Air refrigerata Arca Chiller, Sina, Qualitas, Vilia, In Stock, Mos, Opificium, Supplier, Factory, Factus in Sinis, Dura, Classy, ​​Fance, Facilis-tenendi, Pretium List, Quotatio, CE; I Year Warranty
